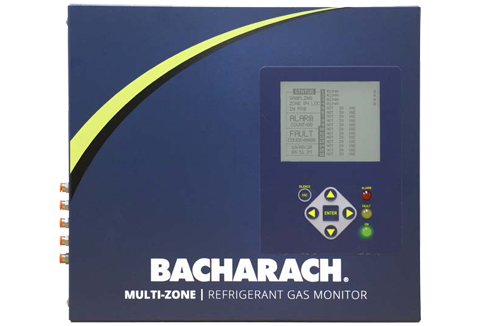

Multi-Zone Refrigerant Monitor

MSA Bacharach’s Multi-Zone refrigerant monitors provides precise measurements enabling early warning, continuous leak detection for compliance with refrigeration safety codes (ASHRAE 15/34, EN378* and CSA-B52) and emissions reduction standards (EPA 608/CARB and F-Gas).



• Proprietary infrared (NDIR) sensor accurately detects the presence of a target gas down to an industry-leading 1 ppm Minimum Detection Level (MDL)

• Sensor is not prone to false alarms caused by cross-interference from other gases or sudden changes in temperature or humidity

• Gas library contains 65+ refrigerants, including CFCs, HFCs, HCFCs, HFOs and natural refrigerants (R-744, R-717)

• Backlit display shows real-time concentration readings and makes configuration and selfdiagnostics intuitive

• Capable of monitoring up-to 16 zones and detecting multiple gases with a single monitor

• Two optional analog outputs (4-20mA) and Modbus communications for integration with thirdparty BMS / BAS control systems

• Three user-configurable relays (leak, spill and evacuate) may be used to activate external beacons / sounders, ventilation or other countermeasures

• One dedicated fault relay


To order call : +64 22 027 3992

​

​

* for A1 Refrigerants
